How to Detach / Attach Multi-purpose Tray

Detaching Multi-purpose Tray

  1. Take cassette out of printer.

    Be sure to remove any paper.

  2. Turn cassette over and remove multi-purpose tray.

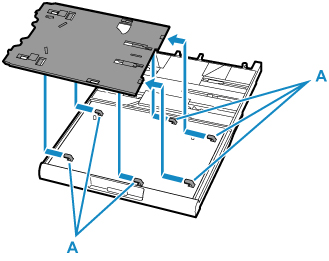

    Slide the multi-purpose tray, take it out of the six tabs (A), and then lift it.

    Important

    • Be sure to remove any orange shipping tape on the multi-purpose tray.

Attaching Multi-purpose Tray

  1. Take cassette out of printer.

    Be sure to remove any paper.

  2. Turn cassette over and attach multi-purpose tray to it.

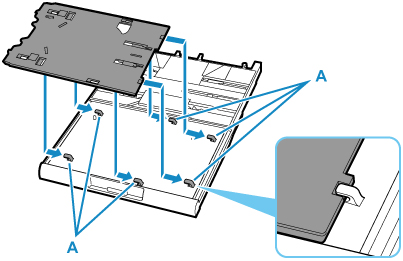

    Turn the multi-purpose tray so that its underside faces up, align it with the six tabs (A) in the orientation shown in the figure below, and then slide to attach.

    Important

    • Insert the multi-purpose tray, making sure that its holes are aligned with the tabs on the back of the cassette. If the multi-purpose tray is not properly attached, it may be damaged when the cassette is inserted into the printer.
